Metal-organic precursors

Copper bis(2,2,6,6-tetramethyl-3,5-heptanedionate)

High-purity copper beta-diketonate precursor for CVD and ALD applications.

Also known as Cu(TMHD)₂ · Copper(II) TMHD · Bis(2,2,6,6-tetramethyl-3,5-heptanedionato)copper(II) · Cu(thd)₂

Catalog purity≥99.0%
CAS number
14040-05-2
Molecular formula
C₂₂H₃₈CuO₄
Molecular weight
430.07 g/mol
Minimum order
25g

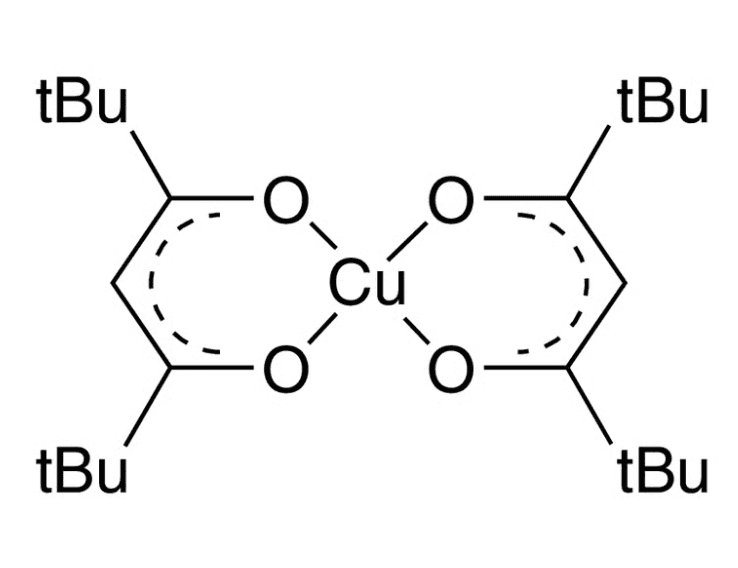

Copper bis(2,2,6,6-tetramethyl-3,5-heptanedionate) chemical structure
Chemical structure · Cu(TMHD)₂

Discuss your requirements

Pricing and lead time are confirmed by quotation. Include the product name, quantity and intended application in your inquiry.

Request a quotation

Use & handling

For professional research and manufacturing. Follow the product-specific storage and handling requirements below and the Safety Data Sheet. Use appropriate personal protective equipment and ventilation.

Storage

Store under inert atmosphere at room temperature, protect from moisture and light

Overview

Copper bis(2,2,6,6-tetramethyl-3,5-heptanedionate), commonly abbreviated as Cu(TMHD)₂, is a volatile copper beta-diketonate complex widely used as a precursor for chemical vapor deposition (CVD) and atomic layer deposition (ALD) of copper and copper oxide thin films. The bulky TMHD ligands impart favorable volatility and thermal behavior, making this compound well-suited for vapor-phase deposition processes targeting Cu, Cu₂O, and CuO films.

Key Advantages

Cu(TMHD)₂ offers several distinct advantages for thin film deposition:

  • Good Volatility: Sublimes at moderate temperatures suitable for CVD/ALD delivery systems
  • Versatile Oxidation States: Can yield Cu⁰, Cu₂O, or CuO depending on process atmosphere
  • Thermal Controllability: Decomposes cleanly under appropriate conditions
  • Established Chemistry: Well-characterized behavior in vapor deposition literature
  • High Purity Available: Electronic-grade material for demanding semiconductor applications

Applications

Semiconductor Interconnects

Used for depositing copper seed layers and copper oxide barrier films in advanced interconnect structures, enabling low-resistivity metal lines at reduced feature sizes.

Catalysis & Sensing

Copper oxide thin films deposited from this precursor are active catalysts for oxidation reactions and gas sensing platforms, including CO oxidation and VOC detection.

Transparent Conductors & Photovoltaics

Cu₂O films produced via CVD/ALD have applications in p-type transparent conductors and as absorber layers in thin-film solar cells.

Magnetic & Spintronic Devices

Controlled deposition of copper oxide films enables integration into spintronic device stacks requiring precise interface engineering.

Manufacturing Capabilities

We offer Cu(TMHD)₂ from research quantities (25g) to production scale with consistent quality. Custom packaging under inert atmosphere available for air-sensitive handling requirements.

Important Safety Information

Warning: This compound should be handled by qualified professionals in a laboratory environment. Store under inert atmosphere and away from light to prevent decomposition. Use appropriate PPE including gloves, safety glasses, and lab coat. Refer to SDS for complete safety information.

Technical specifications

Catalog specifications. Measured batch results belong on the lot-specific Certificate of Analysis.
PropertySpecification
Purity≥99.0%
AppearanceBlue crystalline powder
SolubilitySoluble in organic solvents (toluene, THF, chloroform)
StorageStore under inert atmosphere at room temperature, protect from moisture and light

Product documentation

  • Safety Data Sheet

    Safety and handling information
    Available on request
  • Product specification

    Product limits and analytical requirements
    Available on request
  • Certificate of Analysis

    Measured results for the supplied lot
    Provided with order

Contact the technical team to request documentation for this product.
