Chiral Chemistry in Bioactive Compound Manufacturing: Achieving Enantiomeric Purity

Introduction: The Mirror Image Problem

In the world of bioactive compounds, molecular handedness—chirality—can mean the difference between a therapeutic breakthrough and a dangerous mistake. One enantiomer may cure disease while its mirror image causes harm. This fundamental truth drives our relentless pursuit of enantiomeric purity in every compound we manufacture.

This technical exploration examines the science, challenges, and solutions in chiral chemistry for bioactive compound production.

Understanding Chirality: Nature's Preference for Handedness

The Fundamentals of Molecular Handedness

Chirality—from the Greek word for "hand"—describes molecules that exist as non-superimposable mirror images, much like your left and right hands appear identical yet cannot be perfectly overlaid. A chiral molecule and its mirror image, called enantiomers, represent distinct chemical entities despite sharing identical molecular formulas and connectivity. These enantiomers exhibit identical physical properties under most circumstances—the same melting point, boiling point, solubility, and density—making their separation and analysis particularly challenging. Yet they differ in one crucial aspect: their interaction with polarized light, with one enantiomer rotating the plane of polarization clockwise and the other counterclockwise. More importantly for pharmaceutical and cosmetic applications, enantiomers can exhibit profoundly different biological activities.

The tragic thalidomide disaster of the early 1960s provided the pharmaceutical industry's most devastating lesson in the importance of enantiomeric purity. Marketed as a mixture of both enantiomers, thalidomide's (R)-enantiomer functioned as an effective sedative for morning sickness, while its (S)-mirror image proved teratogenic, causing severe birth defects in thousands of children whose mothers took the medication during pregnancy. This catastrophe fundamentally transformed regulatory approaches to chiral pharmaceuticals, establishing that enantiomers must be treated as distinct chemical entities requiring independent safety and efficacy evaluation. The lesson resonates decades later, driving our industry's uncompromising focus on enantiomeric purity.

Why Biology Discriminates Between Mirror Images

Biological systems themselves are inherently and universally chiral, built from chiral building blocks that create stereospecific three-dimensional environments throughout living organisms. Proteins, the workhorses of cellular function, are constructed exclusively from L-amino acids—evolution selected one mirror image and rejected the other billions of years ago. DNA forms a right-handed double helix, its chirality determining how it interacts with enzymes and regulatory proteins. Enzyme active sites—the precisely shaped pockets where catalysis occurs—present chiral environments that bind one enantiomer snugly while rejecting or poorly accommodating its mirror image. Cell surface receptors, the molecular switches controlling cellular responses, exhibit stereospecific binding pockets evolved to recognize nature's chiral signaling molecules.

This universal biological chirality creates dramatic differences in how enantiomers behave in living systems. Potency can vary by orders of magnitude—one enantiomer binding tightly to its target receptor while the mirror image shows negligible affinity. Efficacy profiles diverge—one enantiomer acting as an agonist activating a receptor while its partner behaves as an antagonist blocking activation. Metabolic pathways discriminate, processing enantiomers at different rates through different routes producing different metabolites. Toxicity profiles can be entirely distinct, as thalidomide horrifically demonstrated. Even duration of action varies as the body's chiral enzymatic machinery metabolizes and eliminates enantiomers at different rates. In developing bioactive compounds for pharmaceutical or cosmetic applications, controlling stereochemistry isn't merely desirable—it's absolutely essential for predictable, safe, efficacious performance.

Chirality in Prostaglandins: The Ultimate Stereocontrol Challenge

Navigating Extreme Stereochemical Complexity

Prostaglandins represent perhaps the most demanding target class in chiral synthesis, presenting challenges that test even the most sophisticated manufacturing capabilities. Consider prostaglandin F₂α, a compound containing five discrete chiral centers within its relatively modest molecular framework. The mathematics of stereochemistry dictate that five chiral centers generate 2⁵ = 32 possible stereoisomers—32 distinct molecular arrangements, each with the same atoms connected in the same sequence yet differing in three-dimensional configuration. Of these 32 possibilities, only one possesses significant biological activity. The other 31 stereoisomers range from inactive to potentially antagonistic, representing not therapeutic agents but impurities that must be rigorously controlled. Pharmaceutical and cosmetic applications demand >99.5% stereochemical purity—meaning that all 31 wrong stereoisomers combined must represent less than 0.5% of the final product.

The biological consequences of stereochemical errors in prostaglandin synthesis can be profound. The C-8 stereocenter with its (R)-configuration proves essential for initial receptor binding—inverting this single stereocenter essentially eliminates biological activity. The C-9 position with its (S)-configuration controls receptor subtype selectivity, determining whether the molecule activates prostaglandin F receptors, E receptors, or exhibits promiscuous binding across multiple receptor families. The C-11 (R)-stereocenter influences activity duration by affecting metabolic stability—compounds with incorrect C-11 configuration undergo more rapid enzymatic degradation. C-12 (R)-configuration affects binding affinity and thus potency, with incorrect stereochemistry reducing efficacy potentially 100-fold or more. Finally, the C-15 (S)-stereocenter influences metabolic pathway selection, determining which cytochrome P450 enzymes process the compound and what metabolites result. This exquisite stereospecificity means that prostaglandin synthesis isn't merely about making a molecular structure—it's about creating a precise three-dimensional architecture with sub-angstrom precision.

Confronting Synthetic Reality: Strategies and Trade-offs

Historically, chemists approached chiral synthesis through three conceptually distinct strategies, each with inherent advantages and limitations that profoundly impact manufacturing economics and sustainability. Classical resolution—synthesizing a 50:50 mixture of enantiomers then separating them—offers simplicity but suffers from fundamental inefficiency. Even perfectly efficient resolution delivers maximum 50% yield because half the material represents the wrong enantiomer. For compounds with multiple stereocenters like prostaglandins, resolution of each stereocenter independently becomes geometrically more wasteful. The resulting waste generation creates both economic penalties (paying for reagents that produce unusable material) and environmental burdens (disposing of or reprocessing significant quantities of undesired stereoisomers).

The chiral pool approach— starting from naturally occurring chiral molecules like amino acids, sugars, or terpenes—elegantly sidesteps the challenge of creating chirality by borrowing it from nature's chiral repository. For prostaglandins, this historically meant starting from natural prostaglandins obtained from biological sources, using their established stereochemistry as the foundation for synthetic modifications. While conceptually appealing, chiral pool strategies face practical limitations: suitable starting materials may have limited availability, commanding premium prices that undermine manufacturing economics. Structural constraints inherent in available chiral precursors may force longer synthetic sequences or preclude certain structural modifications, limiting chemical space accessible to medicinal chemists.

Modern asymmetric synthesis—building desired stereochemistry directly into the synthetic process through stereoselective reactions—represents the ideal solution, creating only the desired stereoisomer while avoiding resolution's waste and chiral pool's constraints. Through chiral catalysts, chiral auxiliaries, or enzymatic transformations, asymmetric synthesis can achieve >99% stereoselectivity, efficiently producing enantiomerically enriched products. This approach demands substantial upfront investment in method development, catalyst optimization, and process understanding. It requires deep synthetic expertise and sophisticated analytical capabilities to confirm stereocontrol. Yet for manufacturing complex chiral molecules at scale, asymmetric synthesis increasingly represents the only economically and environmentally viable path, justifying its development costs through improved yields, reduced waste, and enhanced quality.

Modern Asymmetric Synthesis Strategies

Chiral Auxiliaries

Concept: Temporarily attach chiral molecule to direct stereochemistry

Advantages:

• High selectivity (>95% de)
• Well-established chemistry
• Predictable outcomes
• Auxiliary recovery possible

Disadvantages:

• Extra steps (attachment/removal)
• Auxiliary cost
• Waste generation
• Longer synthesis

Example: Evans Auxiliary:

• Oxazolidinone-based
• Controls aldol stereochemistry

• 99% diastereoselectivity

• Widely used industrially

Chiral Catalysts

Asymmetric Catalysis: Small amounts of chiral catalyst control stereochemistry

Types:

Metal-Based:

• Rhodium (hydrogenation)
• Ruthenium (transfer hydrogenation)
• Titanium (epoxidation)
• Palladium (allylic substitution)

Organocatalysts:

• Proline derivatives
• Cinchona alkaloids
• Thioureas
• Phosphoric acids

Advantages:

• Catalytic amounts (typically 0.1-5 mol%)
• Atom efficient
• Environmentally friendly
• Cost-effective at scale

Industry Example: Noyori asymmetric hydrogenation (Nobel Prize 2001)

• 99% ee achievable

• Wide substrate scope
• Industrial applications

Enzymatic Methods

Biocatalysis: Use enzymes to achieve stereoselective transformations

Enzyme Classes:

• Lipases (ester hydrolysis/formation)
• Ketoreductases (carbonyl reduction)
• Transaminases (amine formation)
• Aldolases (C-C bond formation)

Advantages:

• Exquisite selectivity (often >99.9% ee)
• Mild conditions (aqueous, ambient temperature)
• Green chemistry
• Functional group tolerance

Challenges:

• Substrate specificity
• Enzyme availability/cost
• Scale-up considerations
• Stability issues

Recent Advances:

• Directed evolution
• Enzyme engineering
• Immobilization techniques
• Continuous flow biocatalysis

Analytical Methods for Chiral Analysis

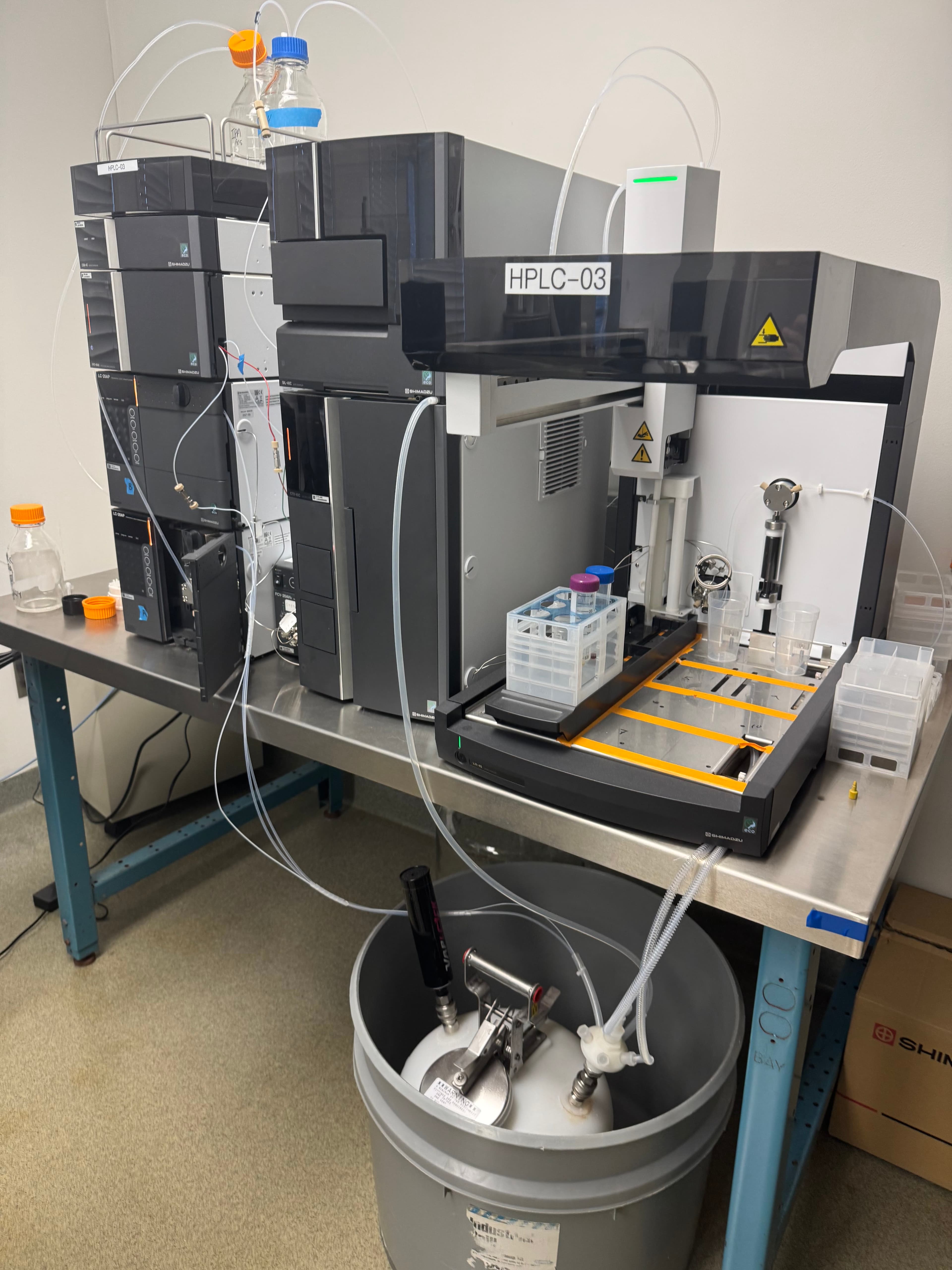

Chiral HPLC

Mechanism: Chiral stationary phases interact differently with enantiomers

Common Phases:

• Polysaccharide-based (Chiralcel, Chiralpak)
• Protein-based (AGP, HSA)
• Cyclodextrin-based
• Pirkle-type (π-π interactions)

Performance:

• Resolution: Rs >2.0 for baseline separation
• Sensitivity: Sub-ppm detection
• Precision: <1% RSD
• Analysis time: 10-30 minutes

Method Development:

1. Screen multiple columns
2. Optimize mobile phase (polarity, modifiers)
3. Temperature optimization
4. Validate per ICH Q2(R1)

Chiral Gas Chromatography

Applications:

• Volatile chiral compounds
• Derivatized products
• High-throughput screening

Advantages:

• High resolution
• Sensitive detection
• Faster analysis vs. HPLC

Limitations:

• Thermal stability required
• Derivatization often necessary
• Lower molecular weight preferred

Optical Rotation

Polarimetry: Measure rotation of plane-polarized light

Specific Rotation: [α]ᴅ²⁰ = α / (l × c)

Where:

• α = observed rotation
• l = path length (dm)
• c = concentration (g/mL)

Applications:

• Identity confirmation
• Enantiomeric excess estimation
• USP monograph requirement

Limitations:

• Requires sufficient sample
• Concentration-dependent
• Not absolute purity measure

Chiral NMR

Chiral Derivatizing Agents (CDA):

• Mosher's acid (MTPA)
• Pirkle's alcohol
• Chiral auxiliaries

Chiral Solvating Agents (CSA):

• Lanthanide shift reagents
• Crown ethers
• Chiral phosphoric acids

Advantages:

• Structural information
• No chiral column needed
• Quantitative

Challenges:

• Lower sensitivity vs. HPLC
• Derivatization required
• Time-consuming

Manufacturing Strategies for Chiral Compounds

Process Design Considerations

Key Factors:

Stereoselectivity:

• Target: >99% ee for pharmaceuticals

• 98% ee for cosmetics

• Risk assessment for each step

Step Economy:

• Minimize total steps
• Each step = yield loss
• Longer synthesis = higher cost

Scalability:

• Lab success ≠ plant success
• Consider heat transfer, mixing
• Equipment availability
• Safety at scale

Cost:

• Raw materials
• Catalyst/reagent costs
• Labor
• Time (campaign length)

Purification Strategies

Crystallization: Most powerful chiral purification

Preferential Crystallization:

• Pure enantiomer crystallizes
• Opposite enantiomer stays in solution
• Can achieve >99.9% ee
• Multiple crops possible

Diastereomer Crystallization:

• Convert to diastereomers (different physical properties)
• Crystallize one diastereomer
• Remove chiral auxiliary
• Common industrial approach

Conditions Optimization:

• Solvent selection critical
• Temperature control
• Seeding strategy
• Slow cooling protocols

Chiral Chromatography at Scale

Simulated Moving Bed (SMB):

Principle: Continuous chiral separation using multiple columns

Advantages:

• Continuous operation
• High throughput
• Solvent efficiency
• Both enantiomers recovered

Applications:

• Multi-ton scale separations
• High-value products
• When synthesis not viable

Costs:

• High capital investment
• Chiral stationary phase costs
• Solvent consumption
• Justified for high-value APIs

Quality Control and Specification Setting

Enantiomeric Purity Specifications

Pharmaceutical Applications:

• API: >99.5% ee typical
• Distomer limit: <0.5%
• Some monographs: <0.2%

Cosmetic Applications:

• Less stringent: >98% ee
• Depends on activity difference
• Regulatory requirements vary

Research Grade:

• Typically >95% ee
• Customer-specified
• Application-dependent

Stability Considerations

Racemization: Conversion of one enantiomer to the other

Common Causes:

• Base/acid catalysis
• Heat
• Light
• Metal ions
• Enzymatic activity

Prevention:

• pH control (neutral storage)
• Low temperature
• Exclude light
• Antioxidants
• Inert atmosphere

Monitoring:

• Time-zero measurement
• Periodic testing (3, 6, 12 months)
• Accelerated studies
• Real-time stability program

Emerging Technologies

Flow Chemistry for Chiral Synthesis

Advantages:

• Better mixing = higher selectivity
• Precise temperature control
• Reduced side reactions
• Continuous operation
• Inline analysis possible

Applications:

• Asymmetric hydrogenation
• Organocatalyzed reactions
• Enzyme-catalyzed transformations

Artificial Intelligence

ML Applications:

• Predict stereoselectivity
• Optimize reaction conditions
• Catalyst design
• Retrosynthesis planning

Data Requirements:

• Large training datasets
• High-quality data
• Diverse chemical space

Current Status:

• Emerging technology
• Promising initial results
• Not yet routine

Biocatalysis Revolution

Enzyme Engineering:

• Directed evolution
• Rational design
• Computational modeling

Results:

• New activities
• Improved stability
• Broader substrate scope
• Higher enantioselectivity

Commercial Impact:

• Replacing chemical steps
• Greener processes
• Cost-competitive
• Pharmaceutical adoption increasing

Case Study: Latanoprost Synthesis

Stereocontrol Challenges

Requirements:

• 5 stereocenters

• 99.5% ee

• 99% de (diastereomeric excess)

• Multi-kilogram scale

Strategy

Key Chiral Steps:

1. Corey Lactone:

• Chiral pool starting material
• Derived from natural prostaglandin
• Defines C-8, C-9, C-11, C-12 stereocenters

2. Wittig Reaction:

• Sets C-15 stereochemistry
• E/Z selectivity >98%
• Conditions critical

3. CBS Reduction:

• Sets additional stereocenter
• Chiral borane reagent

• 99% ee achieved

Quality Control

Testing Protocol:

• Chiral HPLC (4 methods for different stereocenters)
• Optical rotation
• NMR analysis (including NOESY)
• Single crystal X-ray (one batch per year)

Specification:

• Main component: >99.0%
• Total related substances: <1.0%
• Each unknown impurity: <0.1%
• Enantiomeric purity: >99.5%

Best Practices

During Development

✅ Plan stereochemistry early ✅ Consider multiple synthetic routes ✅ Develop chiral analytical methods simultaneously ✅ Assess racemization potential ✅ Document stereochemical assignments thoroughly

During Manufacturing

✅ In-process chiral checks ✅ Controlled storage conditions ✅ Regular method suitability ✅ Trend analysis ✅ Deviation investigation protocols

Documentation

✅ Complete stereochemical characterization ✅ Chiral method validation ✅ Stability data ✅ Process understanding ✅ Impurity profiles

The Mironova Labs Chiral Chemistry Excellence

Over three decades of prostaglandin manufacturing have made stereocontrol not merely a capability at Mironova Labs but a defining organizational competency woven into our scientific culture and manufacturing operations. Our expertise spans the full spectrum of asymmetric synthesis methodologies—from classical chiral auxiliary approaches through modern organocatalysis to cutting-edge biocatalytic transformations. We routinely execute multi-step syntheses establishing four, five, or more stereocenters with exquisite control, producing compounds where every chiral center exhibits >99% stereochemical purity. This synthetic prowess rests upon both our scientists' deep mechanistic understanding and our willingness to invest in method development, recognizing that establishing robust stereocontrol early in process development pays sustained dividends throughout a product's lifecycle.

Our analytical capabilities match our synthetic expertise, essential given that stereocontrol means nothing without rigorous characterization confirming stereochemical outcomes. Multiple chiral HPLC columns spanning polysaccharide-based, cyclodextrin-based, and protein-based stationary phases enable us to resolve even challenging enantiomeric pairs, with method development expertise accumulated across hundreds of chiral separations. Chiral GC capabilities extend our analytical reach to volatile compounds and derivatized products. Polarimetry provides rapid confirmation of optical purity and lot-to-lot consistency. Advanced NMR spectroscopy including NOESY experiments enables absolute stereochemical assignment, definitively establishing which enantiomer or diastereomer we've synthesized. This comprehensive analytical arsenal ensures that stereochemical claims rest upon rigorous experimental foundation, not assumption.

Quality systems tailored specifically for chiral manufacturing ensure that laboratory-demonstrated stereocontrol translates reliably to production reality. In-process chiral checks at key synthetic steps provide early detection of stereochemical drift before substantial value-add occurs. Validated chiral analytical methods with demonstrated specificity, linearity, accuracy, and precision support regulatory filings. Comprehensive stability programs monitor both chemical stability and potential racemization, establishing retest dates supported by data rather than hope. Technical consultation helps customers understand how our chiral products behave in their applications and formulations. Through this integrated approach combining synthetic capability, analytical rigor, and quality focus, Mironova Labs delivers the enantiomeric purity that pharmaceutical, cosmetic, and nutraceutical applications demand—routinely achieving >99% ee on complex molecules where stereochemistry determines success or failure.

Conclusion: Where Molecular Architecture Meets Manufacturing Excellence

Chiral chemistry embodies the intimate connection between molecular structure and biological activity—small three-dimensional differences creating profound consequences in living systems. Successfully manufacturing chiral bioactive compounds requires much more than following synthetic recipes; it demands deep understanding of reaction mechanisms and stereochemical outcomes, sophisticated analytical capabilities confirming what was actually made versus what was intended, manufacturing expertise translating laboratory procedures into robust production processes, quality systems ensuring that today's excellent batch predicts tomorrow's with confidence, and regulatory knowledge positioning compounds for successful approval. This convergence of capabilities—synthetic creativity, analytical rigor, manufacturing discipline, quality focus, and regulatory fluency—distinguishes manufacturers who can reliably deliver enantiomerically pure compounds from those who occasionally succeed through luck rather than design.

At Mironova Labs, 35+ years of experience synthesizing stereochemically complex prostaglandins and related bioactive molecules have made chiral chemistry our distinctive competency and competitive advantage. We understand viscerally that a single inverted stereocenter can transform a therapeutic agent into an impurity, that >99% ee represents not perfectionism but necessity, that controlling stereochemistry during synthesis proves vastly superior to attempting purification after-the-fact. From prostaglandins bearing five stereocenters to custom molecules presenting novel stereochemical challenges, our team delivers not merely molecules but precisely configured three-dimensional architectures meeting pharmaceutical-grade specifications. In markets where molecular handedness determines product efficacy and safety, partner with a manufacturer that has made stereocontrol their specialty and chiral excellence their standard—because in chiral chemistry, close enough has never been good enough.
