Advanced Analytical Methods for Bioactive Compound Characterization

Introduction: The Foundation of Quality

In the bioactive compounds industry, analytical chemistry serves as far more than a quality control function—it represents the cornerstone upon which all claims of purity, identity, and potency rest, the foundation enabling regulatory compliance across global markets, and the scientific lens through which we understand molecular structures, degradation pathways, and impurity profiles. The ability to accurately identify compounds confirming that synthesized materials match intended structures, quantify them with precision measuring concentrations to within percentages or parts per million, and comprehensively characterize their physical, chemical, and biological properties determines not merely product quality but patient safety in pharmaceutical applications, consumer confidence in cosmetics, and ultimately commercial success or failure. Without sophisticated analytical capabilities generating defensible data, even the most elegantly synthesized bioactive compound remains an unknown substance of indeterminate quality unsuitable for commercialization.

This comprehensive exploration examines the advanced analytical methods employed in modern bioactive compound manufacturing, from routine quality control analyses ensuring batch-to-batch consistency through cutting-edge research applications elucidating molecular structures and mechanisms. The analytical methods discussed—high-performance liquid chromatography, mass spectrometry, nuclear magnetic resonance spectroscopy, and complementary techniques—collectively provide the comprehensive characterization that pharmaceutical-grade bioactive compounds demand, enabling manufacturers to confidently assert purity, identity, and quality supported by objective data rather than hopeful assumptions.

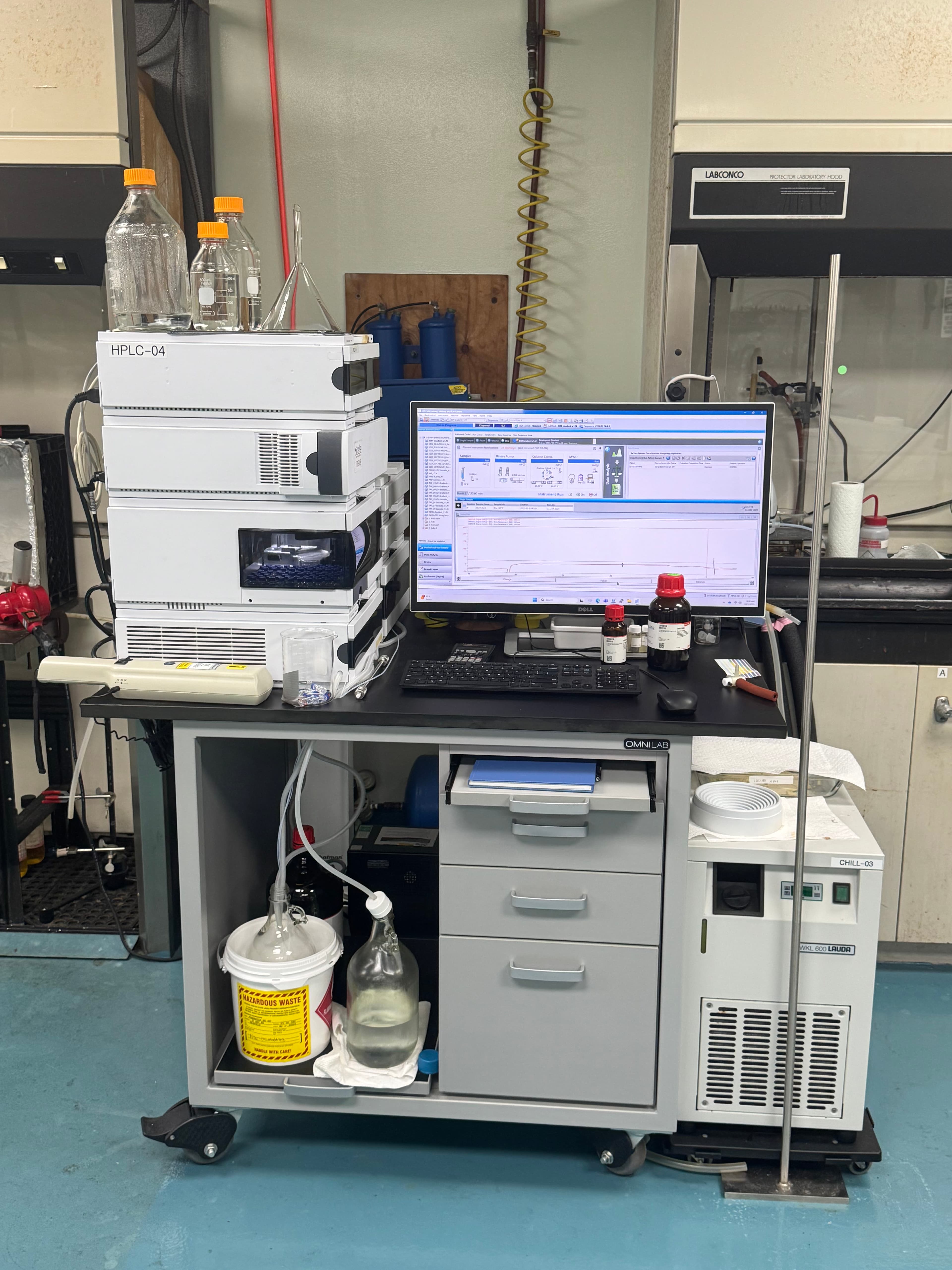

High-Performance Liquid Chromatography (HPLC)

The Workhorse of Pharmaceutical Analysis

HPLC remains the gold standard for bioactive compound analysis due to its:

Versatility:

• Applicable to 70%+ of pharmaceutical compounds
• Wide range of detectors available
• Multiple separation modes
• Scalable from analytical to preparative

Precision:

• Quantification precision <2% RSD
• Excellent reproducibility
• Robust method validation
• Regulatory acceptance

Modern HPLC Techniques

Ultra-High Performance Liquid Chromatography (UHPLC):

• Sub-2 μm particles enable higher resolution
• 5-10x faster analysis times
• Reduced solvent consumption (70-90%)
• Higher sensitivity (3-5x improvement)
• Lower detection limits (pg range)

Application Example: Prostaglandin Purity Analysis

• Column: C18, 1.7 μm, 2.1 × 100 mm
• Mobile phase: Acetonitrile/water with 0.1% formic acid
• Flow rate: 0.4 mL/min
• Detection: UV at 200 nm, MS confirmation
• Run time: 8 minutes (vs. 45 min traditional HPLC)
• Resolution: Baseline separation of 10+ impurities

HPLC Detection Methods

UV-Visible Spectroscopy:

• Universal for chromophoric compounds
• Quantitative analysis (Beer's Law)
• Wavelength scanning for identification
• Diode array detection for purity assessment

Fluorescence Detection:

• 10-1000x more sensitive than UV
• Selective for fluorescent compounds
• Prostaglandin derivatization strategies
• Low pg detection limits

Evaporative Light Scattering Detector (ELSD):

• Universal detection (no chromophore required)
• Mass-based response
• Ideal for compounds lacking UV absorbance
• Compatible with gradient elution

Refractive Index Detection:

• Universal, concentration-dependent
• No wavelength selection needed
• Temperature-sensitive
• Isocratic methods preferred

Method Development Strategy

Systematic Approach:

Phase 1: Initial Screening

• Column chemistry selection (C18, C8, phenyl, CN)
• Mobile phase optimization (pH, organic modifier)
• Gradient vs. isocratic evaluation
• Detection optimization

Phase 2: Optimization

• Resolution improvement
• Peak shape refinement
• Retention time adjustment
• Sensitivity enhancement

Phase 3: Validation

• Specificity demonstration
• Linearity (r² > 0.999)
• Accuracy (98-102% recovery)
• Precision (<2% RSD)
• Robustness testing

Mass Spectrometry (MS)

Structural Elucidation Power

Mass spectrometry provides unparalleled structural information:

Molecular Weight Determination:

• Exact mass measurement (±5 ppm)
• Isotope pattern analysis
• Molecular formula confirmation
• Unknown identification

Structural Characterization:

• Fragmentation patterns
• Stereochemical information (via derivatization)
• Post-translational modifications
• Degradation product identification

LC-MS/MS for Quantification

Triple Quadrupole MS:

Advantages:

• Highest sensitivity (fg-pg range)
• Excellent precision (<5% RSD)
• Wide dynamic range (5-6 orders of magnitude)
• Minimal matrix effects with proper sample prep

Selected Reaction Monitoring (SRM):

• Precursor ion selection (Q1)
• Collision-induced dissociation (Q2)
• Product ion detection (Q3)
• Unmatched selectivity

Application: Prostaglandin Quantification in Biological Matrices

• Sample prep: Solid-phase extraction
• LC: Rapid gradient (3 min)
• Ionization: ESI negative mode
• Transitions: m/z 351 → 271 (latanoprost acid)
• LLOQ: 0.5 pg on column
• Precision: 4.2% RSD at LLOQ

High-Resolution Mass Spectrometry

Time-of-Flight (TOF-MS):

• Resolution: 20,000-40,000 FWHM
• Mass accuracy: <2 ppm
• Full-scan sensitivity
• Retrospective data analysis

Orbitrap MS:

• Resolution: 100,000-500,000 FWHM
• Mass accuracy: <1 ppm
• MSⁿ capabilities
• Quantification + qual ification in single run

Applications:

• Unknown impurity identification
• Metabolite profiling
• Degradation pathway elucidation
• Elemental composition determination

Nuclear Magnetic Resonance (NMR) Spectroscopy

The Gold Standard for Structure Confirmation

NMR spectroscopy provides:

Unambiguous Structure Determination:

• Complete connectivity information
• Stereochemical assignment
• Conformational analysis
• Tautomeric form identification

Quantitative Analysis (qNMR):

• Primary standard independent
• Single measurement for multiple analytes
• Accurate to ±0.5%
• Traceable to SI units

Modern NMR Techniques

One-Dimensional NMR:

¹H NMR (Proton):

• Most sensitive nucleus
• Chemical shift information
• Integration for quantification
• Coupling pattern analysis

¹³C NMR (Carbon-13):

• Complete carbon skeleton
• Quaternary carbon detection
• Less spectral overlap
• Structural confirmation

Two-Dimensional NMR:

COSY (Correlation Spectroscopy):

• ¹H-¹H coupling identification
• Spin system mapping
• Structure elucidation aid

HSQC (Heteronuclear Single Quantum Coherence):

• ¹H-¹³C direct correlations
• Enhanced sensitivity vs. HMQC
• Multiplicity editing

HMBC (Heteronuclear Multiple Bond Correlation):

• Long-range ¹H-¹³C correlations
• Quaternary carbon connectivity
• Critical for complex structures

NOESY (Nuclear Overhauser Effect Spectroscopy):

• Through-space interactions
• Stereochemical assignments
• Conformational analysis
• 3D structure determination

Practical Applications

Identity Confirmation:

• Compare spectrum to reference
• Chemical shift matching (±0.05 ppm)
• Coupling constant verification
• Integration ratio confirmation

Purity Assessment:

• Identify all significant signals
• Quantify major components
• Detect related substances
• Assess stereochemical purity

Impurity Characterization:

• Structure elucidation of unknowns
• Stereoisomer identification
• Degradation product analysis
• Process impurity profiling

Gas Chromatography (GC)

Volatile and Semi-Volatile Analysis

GC excels for:

Residual Solvent Analysis:

• ICH Q3C guideline compliance
• Class 1, 2, 3 solvent detection
• Headspace or direct injection
• ppm to ppb sensitivity

Method Requirements:

• Capillary columns (0.32-0.53 mm ID)
• FID or MS detection
• Automated headspace sampling
• Internal standard quantification
• Validation per USP <467>

Typical Performance:

• Linearity: 5-5000 ppm
• LOQ: 0.5-5 ppm (depending on solvent class)
• Precision: <5% RSD
• Analysis time: 15-30 minutes

Infrared (IR) Spectroscopy

Rapid Identity Confirmation

Fourier-Transform IR (FTIR):

Advantages:

• Rapid analysis (<5 minutes)
• Non-destructive
• Minimal sample preparation
• Library matching capabilities
• 95%+ confidence for identity

Applications:

• Raw material identification
• Incoming material verification
• Polymorph screening
• Functional group confirmation

Limitations:

• Cannot distinguish stereoisomers
• Limited quantitative capability
• Water interference
• Requires reference spectra

Optical Methods

Optical Rotation and Circular Dichroism

Polarimetry:

• Specific rotation measurement
• Enantiomeric excess determination
• USP monograph requirement
• Temperature-dependent

Circular Dichroism (CD):

• Absolute configuration assignment
• Secondary structure analysis (proteins)
• Enantiomeric purity
• Conformation studies

UV-Visible Spectroscopy

Applications:

• Concentration determination
• Chromophore identification
• Reaction monitoring
• Dissolution testing

Beer's Law Quantification:

• A = εbc (absorbance = molar absorptivity × path length × concentration)
• Linearity: typically 5-6 orders of magnitude
• Accuracy: ±2% with proper calibration

Elemental Analysis

Inductively Coupled Plasma Mass Spectrometry (ICP-MS)

Heavy Metals Testing:

• USP <232>/<233> compliance
• ppb-level sensitivity
• Simultaneous multi-element analysis
• Elemental impurities quantification

Typical Limits (per day for oral drugs):

• Arsenic: <15 μg
• Lead: <5 μg
• Mercury: <15 μg (inorganic), <3 μg (organic)
• Cadmium: <5 μg

Method Performance:

• LOQ: 0.1-1 ppb
• Precision: <5% RSD
• Matrix-matched calibration
• Internal standard correction

CHN Elemental Analysis

Combustion Analysis:

• Carbon, hydrogen, nitrogen determination
• ±0.3% accuracy
• Molecular formula confirmation
• Salt stoichiometry verification

Particle Size and Physical Properties

Dynamic Light Scattering (DLS)

Hydrodynamic Diameter:

• Range: 0.3 nm - 10 μm
• Polydispersity index
• Aggregation monitoring
• Formulation development

Differential Scanning Calorimetry (DSC)

Thermal Analysis:

• Melting point determination
• Glass transition temperature
• Crystallinity assessment
• Polymorph identification
• Purity estimation (>98%)

X-Ray Powder Diffraction (XRPD)

Crystallographic Analysis:

• Polymorph identification
• Crystallinity quantification
• Salt/co-crystal characterization
• Phase purity assessment

Integrated Analytical Strategies

Quality Control Testing Battery

Release Testing (Every Batch):

1. Appearance (visual)
2. Identity (HPLC RT, FTIR, ¹H NMR)
3. Assay (HPLC-UV, 98.0-102.0%)
4. Impurities (HPLC-PDA, individual <0.1%, total <0.5%)
5. Residual solvents (GC-FID, ICH limits)
6. Heavy metals (ICP-MS, USP <232>)
7. Water content (Karl Fischer, NMT 0.5%)
8. Optical rotation (specific reference range)

Extended Characterization (New Batches/Annual):

1. High-resolution MS (exact mass)
2. 2D NMR (COSY, HSQC, HMBC)
3. DSC (thermal profile)
4. XRPD (crystallinity)
5. Chiral HPLC (enantiomeric purity >99.5%)

Method Development Lifecycle

Phase 1: Feasibility (2-4 weeks)

• Literature review
• Initial screening
• Proof of concept

Phase 2: Optimization (4-8 weeks)

• Parameter refinement
• Robustness evaluation
• Preliminary validation

Phase 3: Validation (4-6 weeks)

• ICH Q2(R1) guideline compliance
• Protocol execution
• Statistical analysis
• Method transfer

Phase 4: Routine Use

• System suitability testing
• Periodic revalidation
• Continuous improvement
• Technology updates

Emerging Technologies

Ambient Ionization MS

Direct Analysis in Real Time (DART):

• No sample prep
• Open-air ionization
• Rapid screening (seconds)
• High-throughput capability

Desorption Electrospray Ionization (DESI):

• Surface analysis
• Minimal sample damage
• Imaging applications
• Counterfeit detection

Miniaturization and Automation

Microfluidic Devices:

• Reduced sample/reagent consumption
• Faster analysis times
• Parallel processing
• Point-of-care potential

Automated Sample Preparation:

• Liquid handlers
• Solid-phase extraction robots
• Online SPE-LC-MS
• Reduced human error

Quality Assurance in Analytical Labs

Method Validation

ICH Q2(R1) Parameters:

Specificity: Ability to assess analyte in the presence of impurities Linearity: r² > 0.999 over working range Accuracy: 98-102% recovery Precision:

• Repeatability: <2% RSD
• Intermediate precision: <3% RSD Range: 80-120% of target concentration LOD/LOQ: Signal-to-noise approach (3:1 and 10:1) Robustness: Deliberate variation of method parameters

System Suitability

Daily Checks:

• Column efficiency (theoretical plates)
• Peak tailing factor (<2.0)
• Resolution between critical pairs (>2.0)
• Retention time precision (<1% RSD)
• Injection precision (<2% RSD)

Reference Standards

Primary Standards:

• Certificate from recognized body
• Purity >99.5% (assigned value)
• Characterized by orthogonal methods
• Traceability to SI units

Working Standards:

• Qualified against primary standard
• Periodic requalification
• Proper storage (refrigerated, desiccated)
• Expiration date monitoring

The Mironova Analytical Advantage

Our state-of-the-art analytical laboratory features:

Instrumentation:

• UHPLC-PDA-MS (Waters Acquity)
• LC-MS/MS triple quad (high sensitivity)
• 500 MHz NMR with cryoprobe
• High-resolution Orbitrap MS
• ICP-MS for elemental analysis
• Automated GC headspace systems
• FTIR and UV-Vis spectrophotometers

Expertise:

• PhD-level method development scientists
• 35+ years collective experience
• Regulatory submission support
• Custom method development
• Technical consultation

Quality Systems:

• ISO/IEC 17025 principles
• 21 CFR Part 11 compliance
• Validated LIMS
• Comprehensive SOP library
• Regular proficiency testing

Conclusion: The Analytical Imperative

Advanced analytical characterization forms the indispensable foundation of quality in bioactive compound manufacturing—without rigorous analytical capabilities, even the most sophisticated synthesis remains unverified, quality claims rest on assumptions rather than data, and regulatory compliance becomes impossible to demonstrate. The integration of complementary analytical techniques spanning chromatographic separation through mass spectrometric identification to nuclear magnetic resonance structural confirmation ensures comprehensive characterization addressing multiple dimensions of product quality. HPLC provides quantitative purity assessment and impurity profiling, mass spectrometry confirms molecular identity and elucidates structures, NMR definitively establishes stereochemistry and detects subtle structural variations, while complementary techniques address specific needs like elemental analysis, residual solvent quantification, and stability assessment. This multi-technique approach, while demanding substantial investment in instrumentation and expertise, ultimately provides the only defensible path to demonstrating pharmaceutical-grade quality.

As analytical technologies continue their rapid evolution, the bioactive compounds industry benefits from progressive improvements enabling increasingly sophisticated characterization with ever-greater efficiency. Sensitivity advances enable detection at parts-per-billion rather than parts-per-million, revealing impurities previously invisible. Selectivity improvements through high-resolution mass spectrometry and multi-dimensional chromatography resolve complex mixtures into individual components. Faster analysis times through UHPLC and optimized methods enable higher sample throughput supporting larger production volumes. Reduced sample requirements through miniaturized systems and enhanced sensitivity enable characterization from minute quantities. Enhanced structural information from hyphenated techniques and advanced software transforms raw data into molecular insights. Improved data quality through better instrumentation, standardized methods, and sophisticated data processing ensures that analytical results reliably reflect sample composition. These improvements collectively enable quality standards unimaginable a generation ago, raising industry expectations while making pharmaceutical-grade quality increasingly accessible.

At Mironova Labs, our commitment to analytical excellence manifests through state-of-the-art instrumentation including UHPLC-PDA-MS, LC-MS/MS, high-field NMR, high-resolution Orbitrap mass spectrometry, ICP-MS, and comprehensive complement

ary techniques; expert personnel including PhD-level scientists with decades of method development experience; validated quality systems following ISO/IEC 17025 principles and 21 CFR Part 11 electronic records requirements; and collaborative approach treating analytical challenges as opportunities to demonstrate expertise rather than obstacles to avoid. Every prostaglandin, every ergothioneine batch, every custom synthesis product undergoes comprehensive analytical characterization before release, ensuring that quality claims rest on objective data rather than hopeful assumptions. Whether you require routine quality control confirming specifications, advanced impurity characterization supporting regulatory submissions, or custom method development for novel compounds, our analytical capabilities provide the confidence pharmaceutical and cosmetic applications demand—because in an industry where molecular purity and identity determine safety and efficacy, analytical excellence isn't optional but essential.
